19Inch High Resolution 1280*1024 PCAP Touch Monitor JB19T-M250 for Industry Application

Product Categories
JINGBAO INTERNATIONAL CO.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

19Inch High Resolution 1280*1024 PCAP Touch Monitor JB19T-M250 for Industry Application

Brand Name : JB

Model Number : JB19T-M250

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 2000pcs/month

Delivery Time : 7-10 working days

Packaging Details : Carton box

Size : 19inch

Resolution : 1280*1024

Brightness : 250 cd/m² (Typ.)

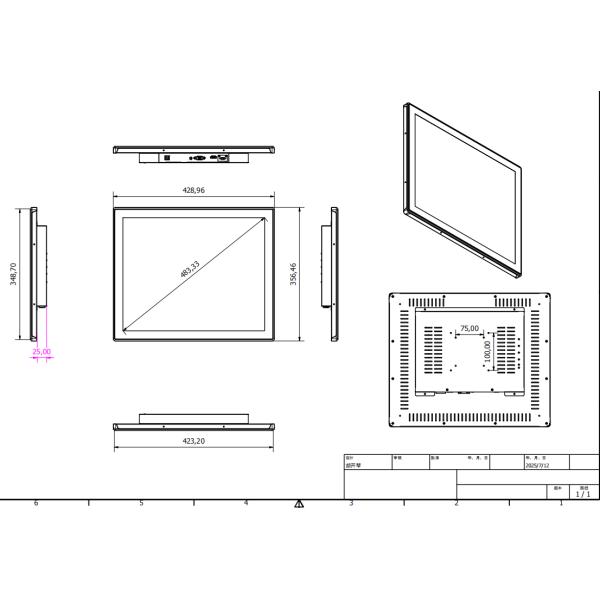

Outline Dimension : 429mm ×356.5mm ×43.8mm

Touch Type : PCAP Touch (10 Points)

Input Function : VGA+HDMI

Working Temp. : 0 ~ 50 °C

Contact Now

19Inch High Resolution 1280*1024 PCAP Touch Monitor JB19T-M250 for Industry Application

19Inch High Resolution 1280*1024 PCAP Touch Monitor JB19T-M250 for Industry Application19Inch High Resolution 1280*1024 PCAP Touch Monitor JB19T-M250 for Industry Application

19Inch High Resolution 1280*1024 PCAP Touch Monitor JB19T-M250 for Industry Application

Parameters

LCD Panel Parameters Panel Size 19inch
Aspect Ratio 4:3
Backlight LED
Pixels

0.294×0.294mm
Active Area Horizon:374.784mm
Vertical:299.827mm
Resolution 1280*1024
Response Time 5ms
Color 16.7 million
Brightness 250 cd/m2
Contrast Ratio 1000:1
View Angel 89/89/89/89 (Typ.)(CR≥10)
Touch Panel Parameters Touch Type PCAP
Touch Cover Thickness 2.4mm
Transparrent Rate 87%
Hardness 7H
Touch Points 10
Response Time ≤10 ms
Tools Finger / Pen
Touch Life Span ≥5000 Million
Touch Accuracy ＜2%
Single Point Operate System Windows XP,Linux
Multi Point Operate System Windows7/8/10,Android
PCAP Monitor Parameters Outline Dimension

429mm ×356.5mm ×43.8mm

Weight

TBA
Video Input Format RGB Analog / Digital
Input Interface VGA+HDMI / DC12V / USB2.0
OSD Power,Menu,Up,Automobile,Down
Power Supply Input DC 12V±5%
Power Max:20w；Stand by: 3w; Power off:2w
Mount Side / VESA 75mm&75mm

Accessories

 Singal cable VGA D-SUB 15pin 1.5M
USB cable 1.8 M
Adaptor 12V/3.0A,105mmx50mmx32mm,1.1M
Certificate 3C CE FCC ROHS
Working Temp. : 0℃-50℃； :
Humidity Working: 20%-80%; Storage: 10%-90%
Operate at altitude ＜3000M
Warranty 1 year

Appication

19Inch High Resolution 1280*1024 PCAP Touch Monitor JB19T-M250 for Industry Application
